X-Filigree V2 improves the performance of the previous version to meet the needs of Middle Eastern designers. Thanks to the special waxy polymer used, this castable resin ensures perfect printing properties with sharp details, excellent dimensional stability in time without shrinkage with any DLP and LCD 3d printer thanks to its low viscosity. Thanks to its physical and mechanical properties, it requires few printing supports. X-filigree V2 was developed by BlueCast in order to allow perfect filigree casting results with any kind of investment and burnout cycles. Standard wax burnout (12 hrs), Fast burnout (6 hrs), Ultra-fast burnout (2 hrs). UV light post-curing is suggested in order to make the pattern more rigid and improve the casting quality.

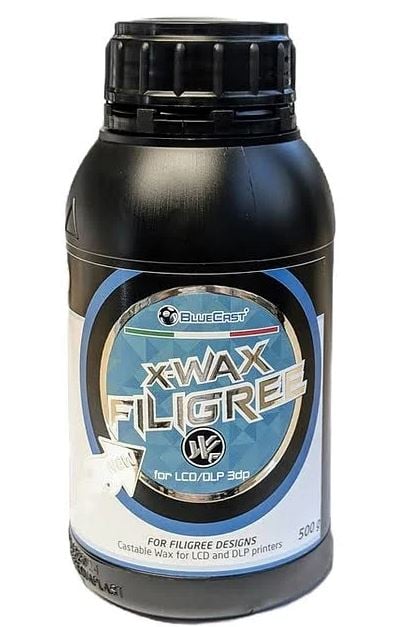

BLUECAST X-FILIGREE V2
$150.00
X-Filigree V2 improves the performance of the previous version to meet the needs of Middle Eastern designers.
Only 1 left in stock
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 3 × 3 × 8 in |
| Compatibility | LCD & DLP Printers |
| Printability | Extreme |
| Castability by Service | Very Good |
| UV Post-Curing | Mandatory |
Downloads
How To Use It
For maximum detail, it is strongly suggested to use HD FEP or No-FEP – PFA. Poor-quality FEP can compromise resin printability.
Perform z-axis calibration following the manufacturer’s instructions.
Before use, it is recommended to heat the resin using microwave ovens (never exceeding 30 seconds), ultrasonic cleaners, hot air, baby bottle warmer, etc.
Before pouring the resin into the resin tank, shake the bottle for one minute.
For proper debubbling, allow the resin to rest in the resin tank for 5 minutes before starting the print. To expedite the process, the resin can also be filtered to remove air bubbles or vacuumed from the opened bottle.
Failure to filter the resin after each print or neglecting to heat the resin before each print may result in printing failures. Do not store the resin in the tank. Please remove the resin from the printer tank, filter it, and store it in the original bottle.
The patterns printed with this resin are harder and stiffer compared to other BlueCast resins.
Clean the prints using 91% to 99% ethyl alcohol or IPA.
When using an ultrasonic cleaner, run a 2-minute cycle (recommended procedure).
With a resin washer machine, run a cycle of approximately 3 minutes.
For simple immersion in an alcohol bath, wait approximately 5 minutes.
After washing, dry the patterns with compressed air.
If compressed air is unavailable, a hairdryer can be used to dry the patterns.
A minimum post-curing time of 10 minutes is required.
After UV post-curing, a quick washing with brand new alcohol ensures excellent casting results (dry it again).
